Quick Details

  • Type: Sealing Machine
  • Condition: New
  • Application: Commodity, Food
  • Packaging Type: Capsule
  • Packaging Material: Metal, Plastic
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 220V50Hz
  • Power: 4KW
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: shenhu
  • Model Number: KC-4
  • Dimension(L*W*H): 3500*800*1750mm
  • Weight: 800kg
  • Certification: CE ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: capsule packaging machine
  • Product name: capsule filling sealing machine
  • Suitable for: Food Packing
  • Usage: sealing capsule
  • Function: Food Container Sealing
  • Keyword: capsule filling sealing machine
  • Warranty: One Year
  • Material: Stainless Steel
  • Capacity: 2400-3000cups/h

Packaging & Delivery

Packaging Details standard export wooden case package for Equipment for The Production of Coffee Capsules/Capsule Filling Machine Price/Capsule Packaging Machine
Delivery Time shipped in 30 days after payment
Product Description

Equipment for The Production of Coffee Capsules/Capsule Filling Machine Price/Capsule Packaging Machine

Filling head
4 head
Production Capacity
Air Consumption
Power Source

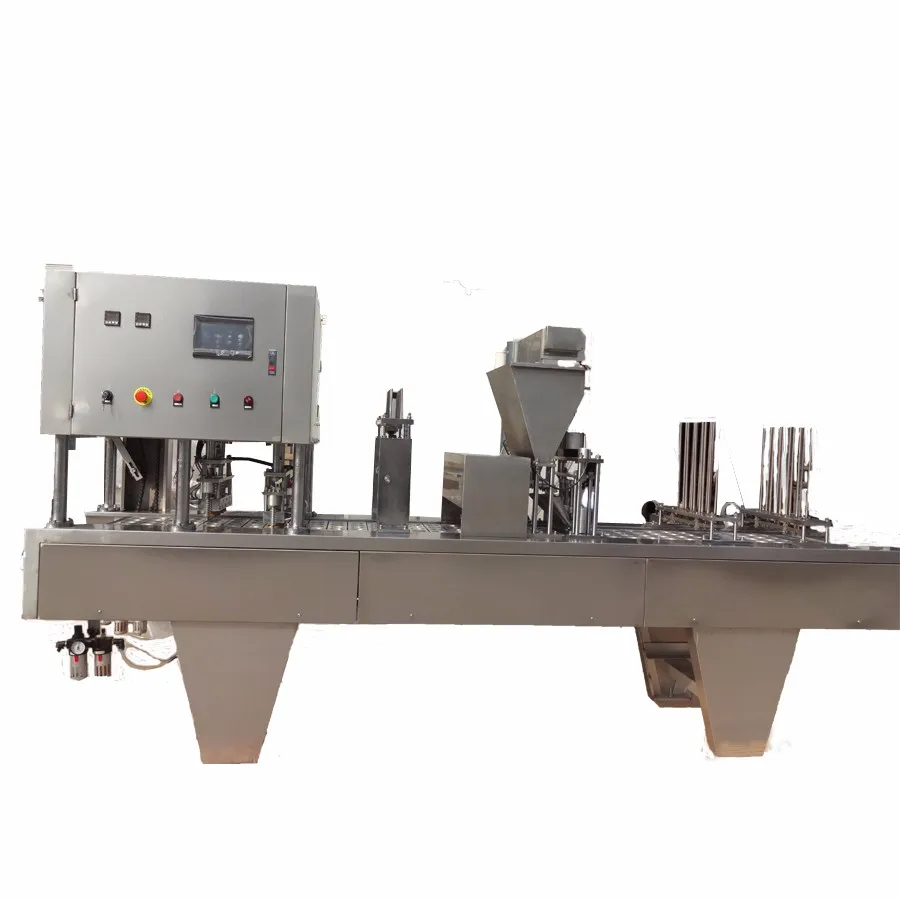

Equipment for The Production of Coffee Capsules/Capsule Filling Machine Price/Capsule Packaging Machine
KCup series automatic filling sealing machine, automatic high-speed sealing machine are from the drop cups, filling, put the film, print dates,twice sealing, cup out are automatic. Electrical and pneumatic components are all famous manufacturers of products (also can customized according to customer need),stable quality,long life, it is important mechanical parts are made of advance precision machining centers, so mechanical with a good steady job advanced performance and reliable quality. Machine temperature control system wiyh a new electric thermostat controller is new generation of intelligent heating system, good temperature effect, more energy, new design, teasonable sreucture, beautiful, acid-resistant stainless steel, meet the health standards,easy to maintenance.
Optional Devices
Glass cover
Make sure the producing environment clean.
Frame made of stainless steel
Normally, the frame is made of lacquered U-steel and covered by stainless steel
Whole machine made of stainless steel
All the parts will be made of stainless steel.
Nitrogen flushing before sealing
Flush nitrogen. The nitrogen generator need configurate by user
Air clean system
Keep cleaned air move in the area of machine.
No cups no filling
No cups will not filling.

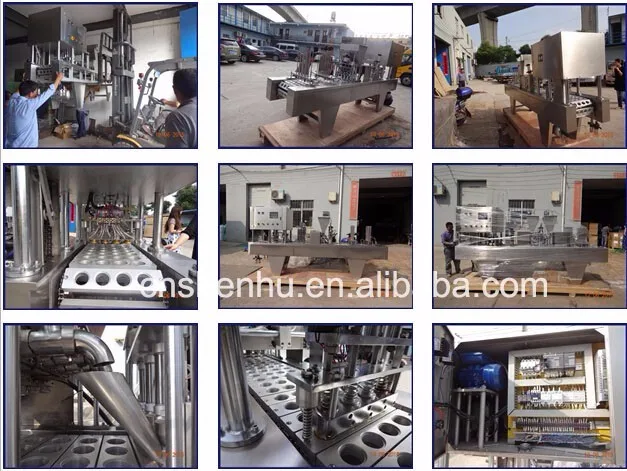

Detailed Images

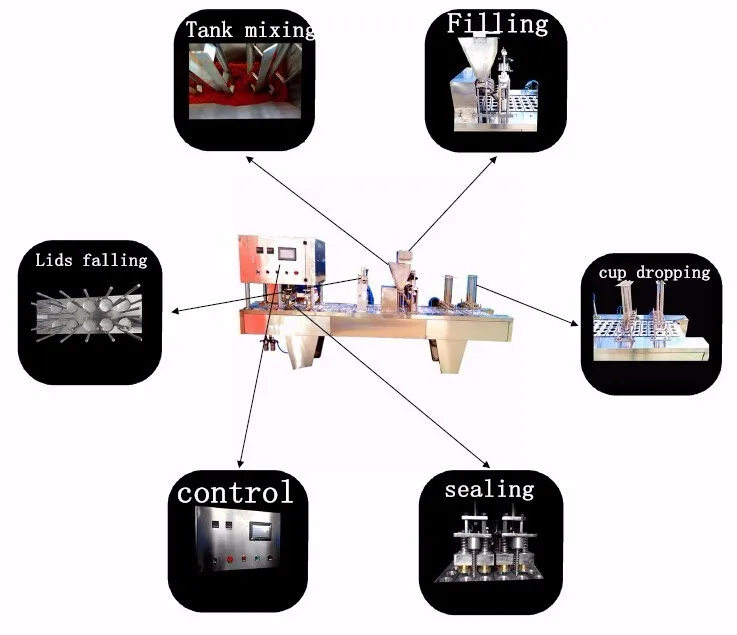

Working Process

Step 1. Automatic falling cups one by one;
Step 2. Automatic screw filling coffee powder with high precision(volume can be adjusted by yourself on machine);
Step 3. Automatic press coffee powder tight;
Step 4. Automatic mixing tank;
Step 5. Automatic sucking and putting foils;
Step 6. Automatic sealing;
Step 7. Automatic push-out finished cups.
Note: the machine controlled by PLC with the English word touch screen.

Packing & Delivery

We use ply-wood case for packing machines, it will meet export standard like safety, protection requirement and durable performance in long time shipping by sea or air.

For machine is big and heavy parcel, and different country with different delivery cost. And the best delivery we suggest is by sea, so the delivery cost will be depended on your destination port.

Our Company

Shanghai shenhu packaging machinery equipment Co,ltd.

Shanghai shenhu packaging machinery equipment Co,ltd. is located in Nanxiang Town, Shanghai city,we have advanced management concept, outstanding R&D team, innovative science and technology, thorough presale, in sale and after sale service system.we combined with domestic and international advanced packaging concept to create first-class packaging machinery all over the world.we are a long-established factory specializing in providing packaging equipment for toothpaste, cosmetics,food, beverage,daily chemical, agrochemicals,fine chemical,and other industries. Our main equipment is: tube filling and sealing machine,cup filling and sealing machine,filling and capping machine, automatic cartoning machine and their related production lines.
We are in the business of packaging machines for more than 10 years.
